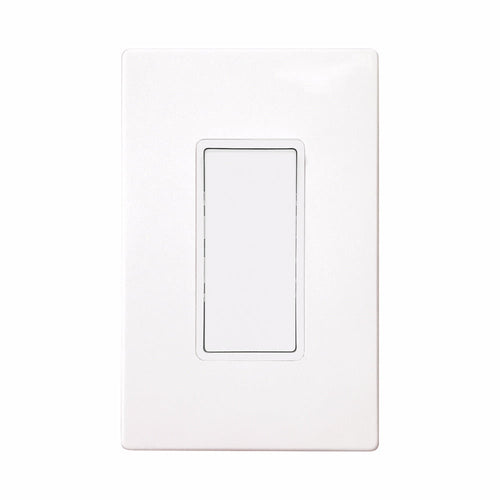

Eaton Eaton Standard Grade Decorator Switch Box 7501W

Eaton

Eaton standard grade decorator switch, Box, #14-12 AWG, 15A, Flush, 120/277V, Back/push, Decorator, Maintained, White, Motor Control, Fan, LED, Incand, ELV, MLV, CFL, Florscnt, Halogen, Single-pole, Thermoplastic 752360

GENERAL SPECIFICATIONS

PRODUCT NAME: Eaton standard grade decorator switch
CATALOG NUMBER: 7501W-BOX
UPC: 032664752360
PRODUCT LENGTH/DEPTH: 1.44 in
PRODUCT HEIGHT: 4.19 in
PRODUCT WIDTH: 0.97 in
PRODUCT WEIGHT: 0.001 lb
COMPLIANCES: NAFTA RoHS Compliant
CERTIFICATIONS: cULus Listed

PRODUCT SPECIFICATIONS

SPECIAL FEATURES: Box
SWITCH TYPE: Single-pole
PHASE: Single-phase
LOAD TYPE: ELV, Fan, HAL, Motor Control, CFL, INC, LED, MLV, FLR
CLOSURE TYPE: Maintained
COLOR: White
WIRING METHOD: Back and push
MATERIAL: Thermoplastic
MOUNTING METHOD: Flush
ALLOWABLE WIRE SIZE: #14-12 AWG
AMPERAGE RATING: 15 A
NUMBER OF POLES: Single-pole
TYPE: Switch decorator
VOLTAGE RATING: 120/277 V
ACTUATOR: Decorator
